Easy Reader+® Printer Paper Roll (Special Terms Apply*)

X

We're always working hard to give our customers as much information on products and the best price possible. If you need any assistance or would like a quote please contact us and we will be happy to help

Easy Reader+® Printer Paper Roll (ROLL-1) is a printer paper roll for use on the Easy Reader+® POC reader allowing quantitative measurements from fingerprick whole blood samples using rapid lateral flow tests. The instrument includes the most advanced and up-to-date technologies (touch screen, enhanced memory, internet upgrading…). Manufactured by VEDALAB.

Product Brand:
Product Code: ROLL-1
Description

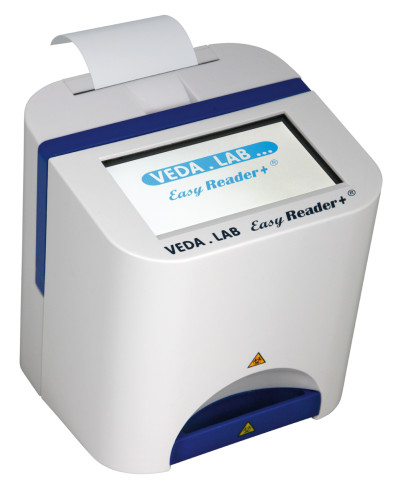

The EasyReader+® instrument is a quantitative lateral flow immunochromatography analyzer. The EasyReader+® installation kit includes the analyzer and the software that lets the operator actuate the evaluation processes, regulate the functioning, storing and moving measurement results database.

The EasyReader+® analyzer is intended to provide a quantitative immunochromatography assay result for a wide range of otherwise purely qualitative rapid test devices to increase the accuracy and efficiency of the home, point of care, and laboratory testing of the relevant marker analytes.

Rapid test device technology
The test specimen (type of sample that can be used on the instrument, as indicated in the corresponding device manual for each parameter) that the operator dispenses into the assay device migrates, with spontaneous capillary action, all through the membrane, and interacts with the particles and molecules placed at various parts of the membrane.

1 It first interacts with the conjugate, where it binds with the color-coated bio-active particles. The specimen analytes that pass through the conjugate therefore become color-coated themselves.

2 The specimen then passes through the Test Line (T) and the Control Line (C), where two types of capturing components are present in the membrane:

– The components in the Control Line capture every colored particle that passes through them, and indicate whether the assay device is functional: When an adequate number of colored particles, are captured, a colored band appears across the Control Line, which means that the test result is valid.
– The components in the Test Line are analyte-specific, and only capture test particles that bound to the analyte that the test detects. When an adequate number of analyte-bound colored particles are captured, a colored band appears across the Test Line, which indicates a positive test result.

Assay device processing
1 After the specimen is dispensed into the assay device, a device-specific incubation time must elapse before a reading can be made. You can time the incubation time yourself, or set the EasyReader+® device to count it down.

2 When the incubation time elapses, the instrument shines a green LED light onto the surface of the membrane of the assay device. The green light is used for evaluation and serves to increase the contrast of the potential discoloration by effectively subtracting the white background from the image.

3 A CMOS camera takes a picture of the oval test window of the device, using the light from the LEDs. The image processing software scans the resulting image, detects any discoloration, and calculates the average saturation of the colored area on the membrane.

4 The microprocessor compares the average saturation value detected in the image to the preset device-specific cutoff ranges to arrive at a semi-quantitative test result.

Product Specification
Specification Type
Specification Value
Product Range
Product Code
ROLL-1
Product Name
Easy Reader+® Printer Paper Roll (Special Terms Apply*)
Product Category
Product Brand
Product Analyte or Application
Product Size
1 x 1 unit
Product Special Terms
Minimum Order Qty: x 10
